Air Container Sizes
| AMA CONTAINER | |
| ATA code | M1 |
| Weight Limitation Inc. ULD Tare Weight | 6,804 kg |
| Tare Weight | 360 kg |
| Internal Volume | 621 cu. ft. 17.58 cbm |
| Loadable Aircraft Type | 747F |
| AMF CONTAINER | |
| ATA code | n/a |
| Weight Limitation Inc. ULD Tare Weight | 5,035 kg |
| Tare Weight | 360 kg |
| Internal Volume | 516 cu. ft. 14.6 cbm |
| Loadable Aircraft Type | 747,747F, 777, Airbus |

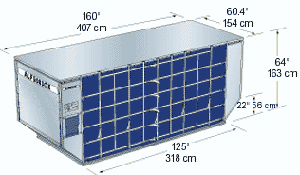

| AMU CONTAINER | |
| ATA code | LD39 |
| Weight Limitation Inc. ULD Tare Weight | 5,035 kg |
| Tare Weight | 290 kg |
| Internal Volume | 557 cu. ft. 17.77 cbm |
| Loadable Aircraft Type | 747, 747F |
| ALF CONTAINER | |
| ATA code | LD6 |
| Weight Limitation Inc. ULD Tare Weight | 3,175 kg |
| Tare Weight | 155 kg |
| Internal Volume | 310 cu. ft. 8.78 cbm |
| Loadable Aircraft Type | 747, 747F, 777, Airbus |

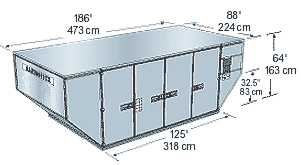

| AAU CONTAINER | ||
| ATA code | LD29 | |
| Weight Limitation Inc. ULD Tare Weight | 4,626 kg | |
| Tare Weight | 355 kg | |
| Internal Volume | 505 cu. ft. 14.3 cbm | |
| Loadable Aircraft Type | 747, 747F | |
| AKE CONTAINER | ||
| ATA code | LD3 | |
| Weight Limitation Inc. ULD Tare Weight | 1,588 kg | |
| Tare Weight | 100 kg | |
| Internal Volume | 152 cu. ft. 4.3 cbm | |
| Loadable Aircraft Type | 747, 747F, 777, Airbus | |
| AVJ CONTAINER | ||
| ATA code | LD1 | |
| Weight Limitation Inc. ULD Tare Weight | 1,588 kg | |
| Tare Weight | 100 kg | |
| Internal Volume | 162 cu. ft. 4.80 cbm | |
| Loadable Aircraft Type | 747m, 747F | |
| AAP2 CONTAINER | ||
| ATA code | LD9 | |
| Weight Limitation Inc. ULD Tare Weight | 4,626 kg | |
| Tare Weight | 222 kg | |
| Internal Volume | 371 cu. ft. 10.51 cbm | |
| Loadable Aircraft Type | 747, 747F, 777, Airbus | |
| RAP CONTAINER | ||
| ATA code | LD9 | |
| Weight Limitation Inc. ULD Tare Weight | 4,626 kg | |
| Tare Weight | 330 kg | |
| Internal Volume | 352 cu. ft. 9.2 cbm | |
| Loadable Aircraft Type | 747, 747F, 777, Airbus | |
| RKN CONTAINER | ||
| ATA code | LD3 | |
| Weight Limitation Inc. ULD Tare Weight | 1,588 kg | |
| Tare Weight | 190 kg | |
| Internal Volume | 125 cu. ft. 3.55 cbm | |
| Loadable Aircraft Type | 747, 747F, 777, Airbus | |

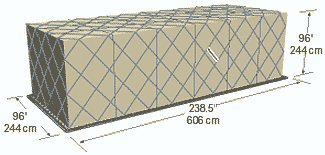

| P7E, PGA Pallet | ||
| Size | Base: 96" x 238.5" Height: 96" (Q6 Contour), 118" (Q7 Contour) |
|
| Weight Limitation Inc. ULD Tare Weight | 11,340 kg | |
| Tare Weight | 480 kg | |
| Loadable Aircraft Type | 747F | |

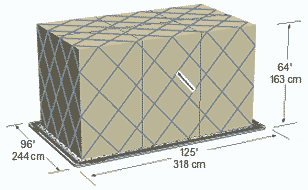

| PMC, PQP, P6P Pallet | ||
| Size | Base: 96" x 125" Height: 64" (Passenger flight), 96" (Q6 Contour) , 118" (Q7 Contour) |
|
| Weight Limitation Inc. ULD Tare Weight | 11,340 kg | |
| Tare Weight | 480 kg | |
| Loadable Aircraft Type | 747F | |
| P1P, PAG Pallet | ||
| Size | Base: 88" x 125" Height: 64" (Passenger flight), 96" (Q6 Contour) , 118" (Q7 Contour) |
|
| Weight Limitation Inc. ULD Tare Weight | 4,626 kg (LD), 6,033 kg | |
| Tare Weight | 105 kg | |
| Loadable Aircraft Type | 747, 747F, 777, Airbus | |

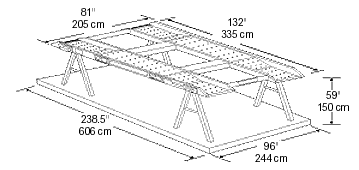

| VZA, VRA | ||
| Size | Fitted on PGA 20ft. Pallet | |
| Weight Limitation Inc. ULD Tare Weight |
2,500 kg (Upper Car) 9,300 kg (Max Gross Weight of Pallet) | |
| Tare Weight | 319 kg (2 trestles: 139 kg Platform: 180 kg) | |
| Loadable Aircraft Type | 747F Upper Deck | |
| Max Width for LowerCar | 81" / 205 cm | |
| Max Center Height for Lower Car |
59" / 150 cm | |
| Max Wheel Base | 123" / 312 cm | |
| PEB Pallet | ||
| Size | Base: 53" x 88" Height: 84" |
|
| Weight Limitation Inc. ULD Tare Weight | 1,800 kg (B-HIH - 1,300 kg) | |
| Tare Weight | 55 kg | |
| Loadable Aircraft Type | 747F | |
